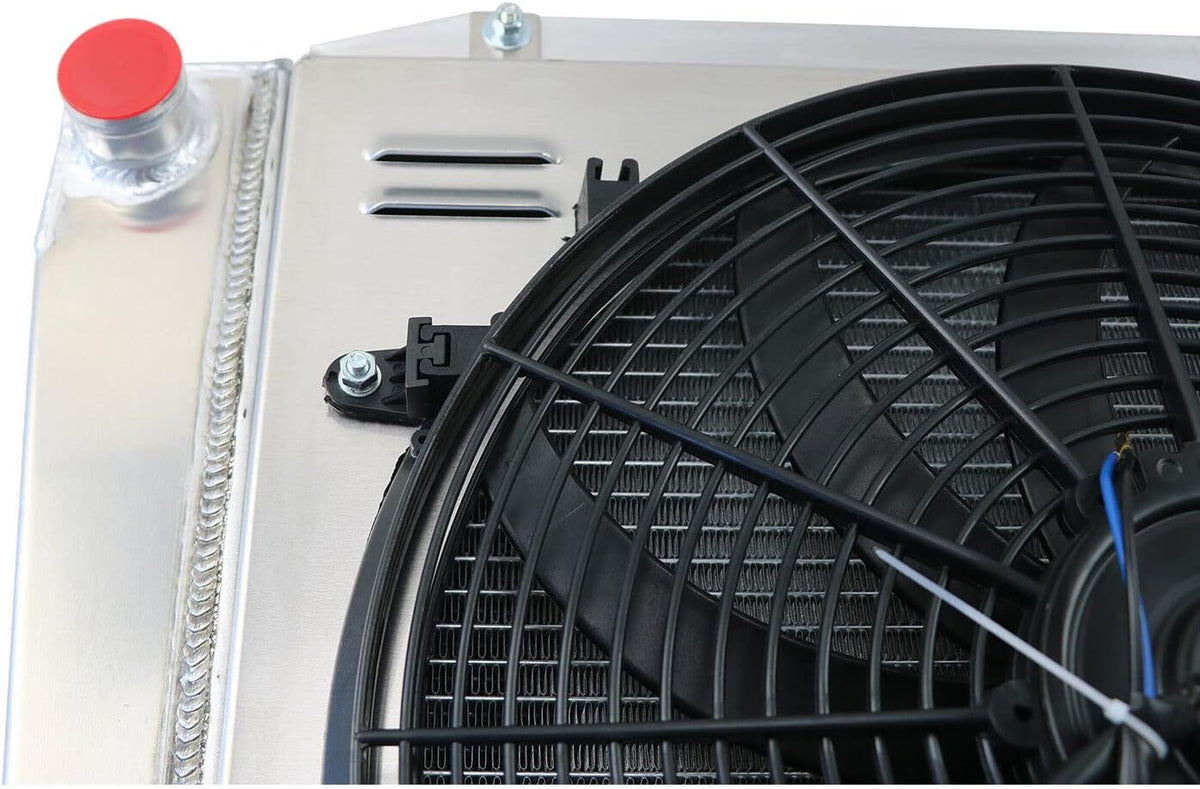

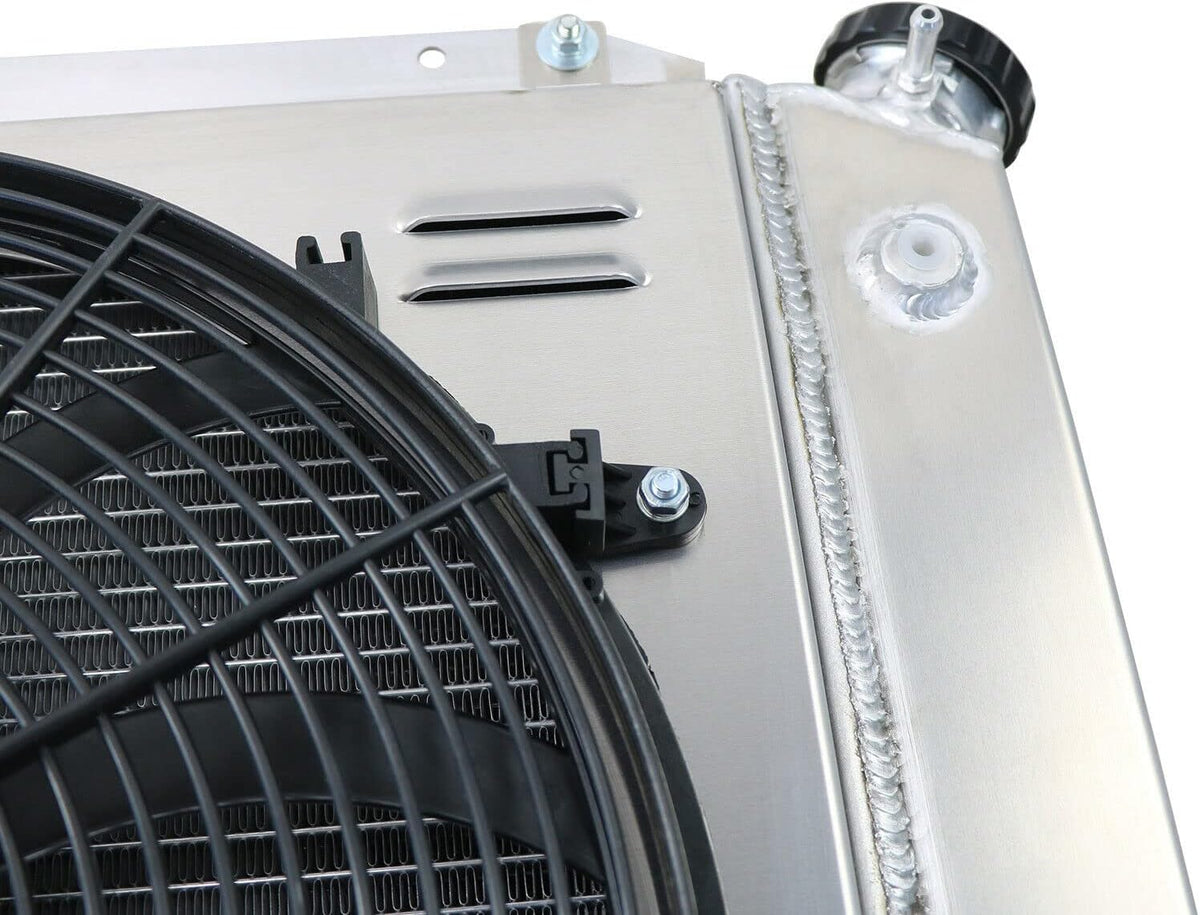

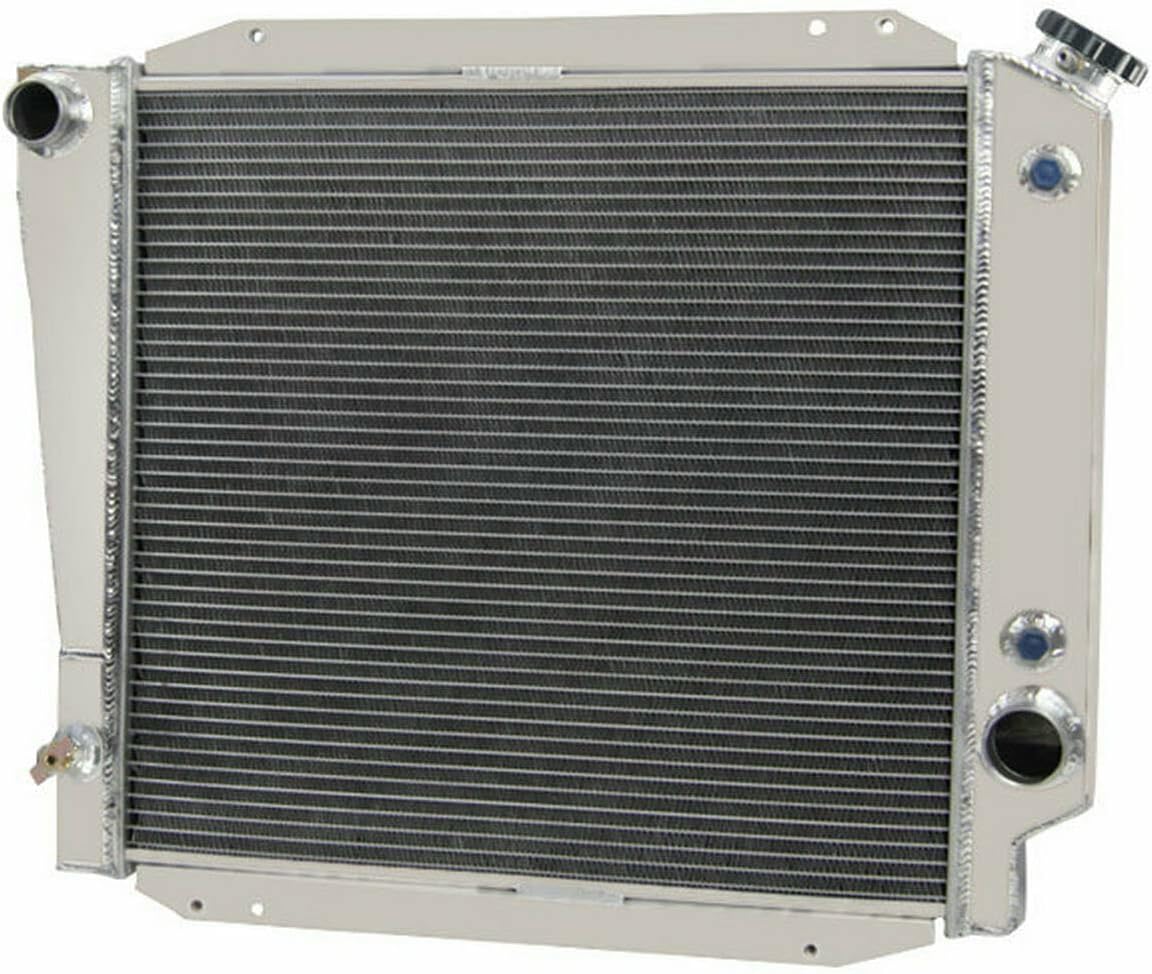

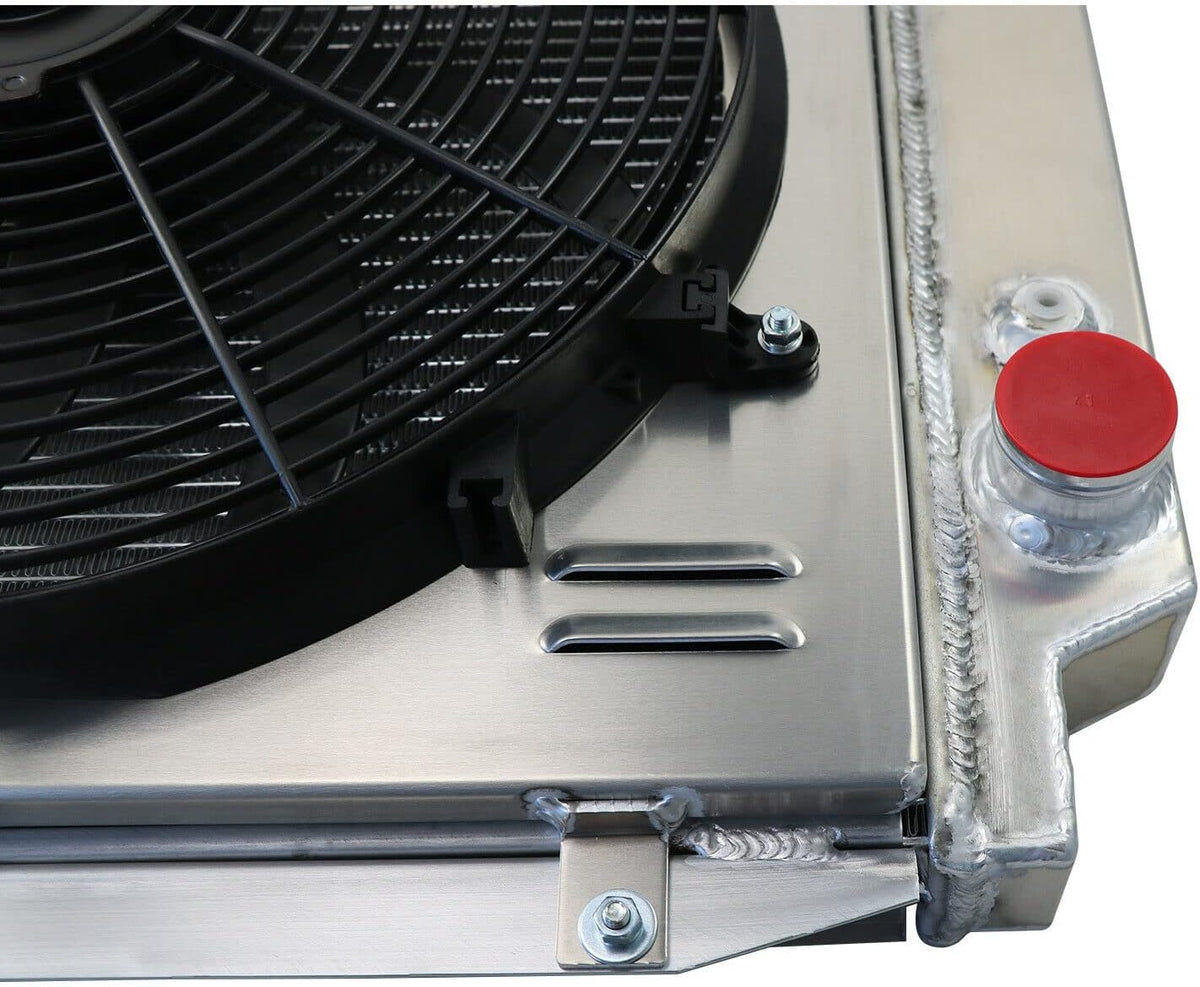

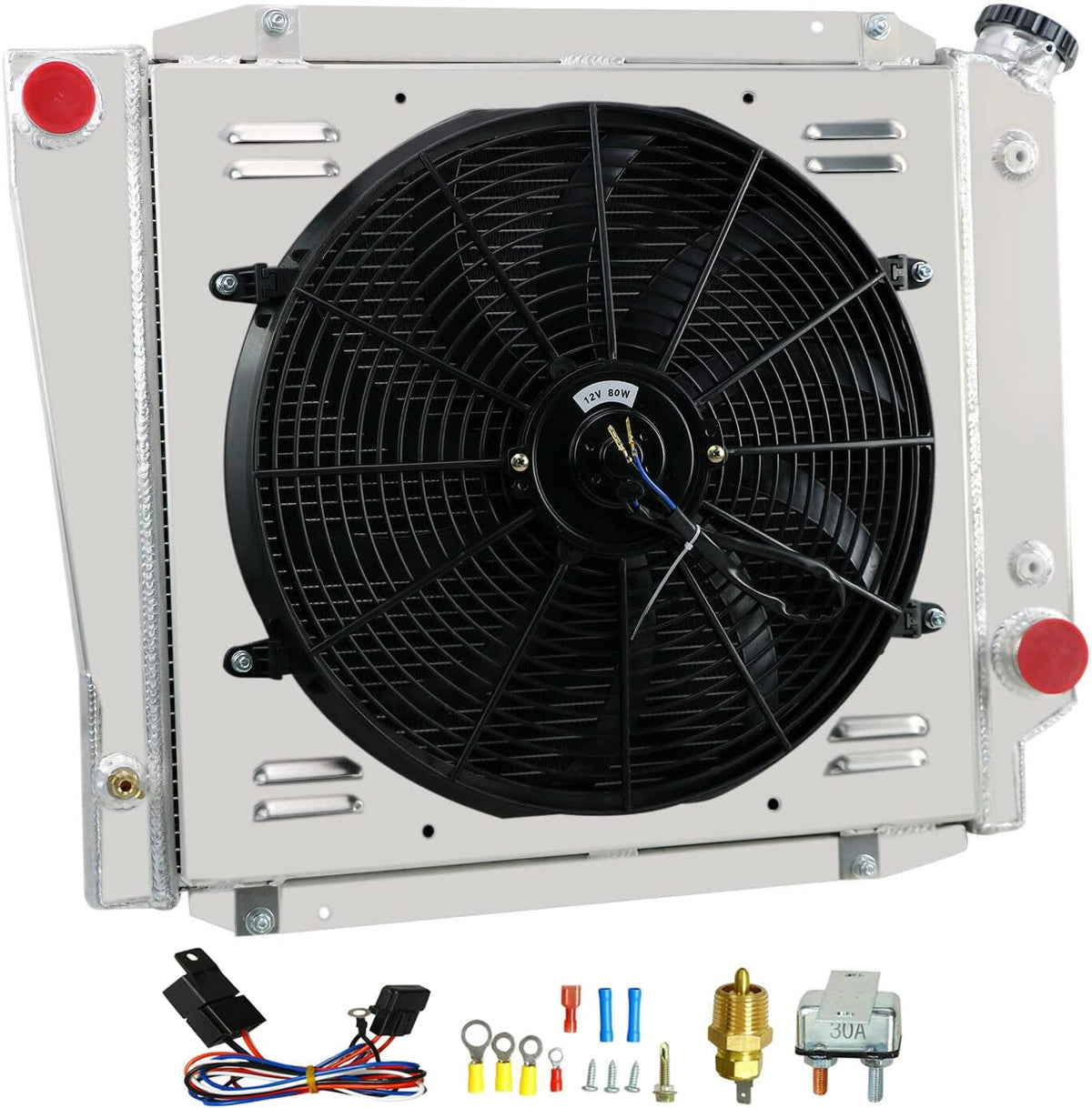

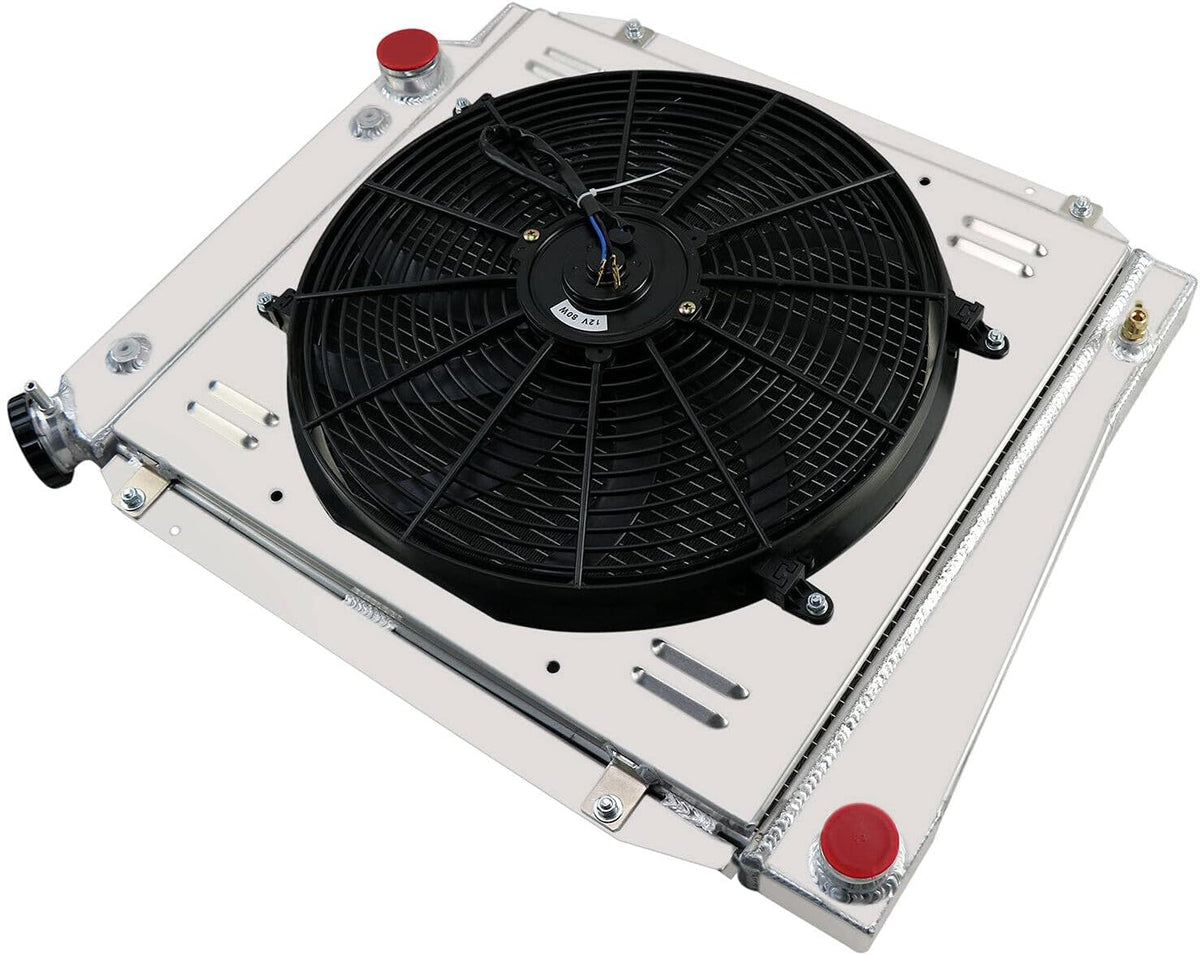

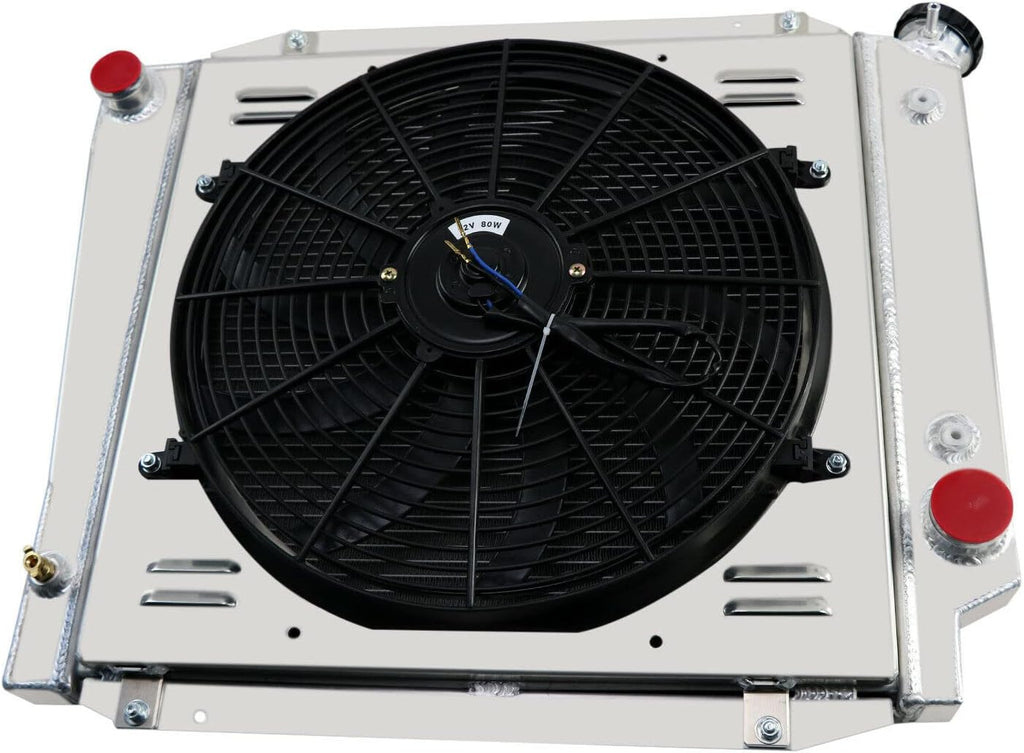

4 Row Aluminum Radiator with Shroud Fan and Relay Y60696

"Package Include: 1 X 4 Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16""Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Configuration: 4-Row of tubes Core Racing Design Tank Material: T-5057 Aircraft Grade Aluminum Core Size: 19 1/4"" WIDE X 18 1/4"" HIGH OVERALL Size: 25 1/4"" WIDE X 20 3/4"" HIGH Tank Size: 2 3/4"" X 19 1/4"" - Both Inlet Hose Connection: 1 1/2"" Drivers Side Outlet Hose Connection: 1 3/4"" Passenger Side Transmission Oil Cooler: YES CNC machined filler neck and cap. OEM Style Brass Petcock Drain FAN Specification: Fan Size: 16"" Volts: 12 V Watts: 120 w Number of Fan Blades: 10 Maximum Fan FAN CFM＞=1000 CFM Maximum Fan RPM=2000±10% RPM OE Fitment or Replacement, Push or Pull Type Easy direct installation, require NO modification Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans & pull air in through radiator. This radiator compatible with: FOR 66-77 Ford Brono V8 FOR 66-77 FORD BRONCO WAGON/ROADSTER 5.0L 302 V8 FOR FORD BRONCO 289/302 5.0L V8 66-77 Interchange Part Number: 521,CC521,EC521,DPI521,MC521"
